Technology Range

Our standard technology range of products includes 7 products: Hurricane, Lightning, Storm, Thunder, Eagle, Phantom and Kleko360, which all provide single-sided temporary fastener solutions for aerospace applications from 2.2mm (5/64 inch) to 25.4mm (1" inch) via lengths of 0.4mm (1/64 inch) to 152.4mm (6 inches). Most of our product ranges are available in both fully-flush (countersunk), ultra-low profile (3.5mm (0.137 inch)) and protruding head and can be ordered directly from us or via our distribution network. All fastener technology can be installed with hand tool, power tools or via a automated system such as a robot. All our products provide doweling and clamping to ensure correct placement, maximum hold and are rated for 500 cycles.

Our Lightning design is focused on high and low load, small to large hole size applications and uses an expanding leg design to enlarge on the blind side of a structure and pull back over the main body to provide clamping. As the legs move over a ground cylinder, our Lightning Kwikbolt keeps holes true and provides a high or low clamp and very high sheer performance

Kwikbolt | Lightning Product Page

Our Hurricane design is focused on high load, larger hole size applications and uses an expanding petal design to enlarge on the blind side of a structure and pull back on itself to provide clamping. As the petal moves through a ground cylinder our Hurricane Kwikbolt keeps holes true and provides a high clamp and very high sheer performance.

Kwikbolt | Hurricane Product Page

Our Thunder design is focused on applications that require small blind side clearance and delivers high and low clamp load, small or large hole size application using a driven legged cylinder design to engage clamping, drive the legs into the head and pull back on itself to provide clamping. As the ground legged cylinder moves into the head, the Thunder keeps holes aligned

Kwikbolt | Thunder Product Page

Our Storm design is focused on wet applications that require high or low clamp load for large or small hole size, using a clean and clamp process via an expanding leg design to enlarge on the blind side of a structure and pull back over the main body to provide clamping. As the legs move over a ground cylinder, our Storm Kwikbolt keeps holes true, clean and provides a high performance.

Kwikbolt | Storm Product Page

Our Eagle Jig Fasteners design is focused on providing the most versatile range of jig fasteners to aid the creation of precise holes in structure.  These single sided temporary fasteners (SSTP) allow for doweling, clamping and installation all from one side. They provide a high load, high shear and standard 1 inch grip range as well as be customised to fit any jig and has a standard interface.

Kwikbolt | Eagle Jig Fasteners

Our Phantom Jig Fasteners design is focused on providing high performance, tight tolerances jig fasteners to aid the creation of precise holes in structure. These single sided temporary fasteners (SSTP) allow for doweling, clamping and installation all from one side while providing precise alignment and a ultra low profile. They provide a high load, high shear, bespoke hole diameter and grip range as well as be customised to fit any jig.

Kwikbolt | Phantom Jig Fasteners

The Kleko360 standard product range covers the standard hole sizes and grip ranges that are found within the aerospace and defence market. These off the shelf single sided temporary fasteners (SSTP) allow for doweling, clamping and installation all from one side. They provide a high clamp load and sheer.

Kleko360 | Standard Product Page

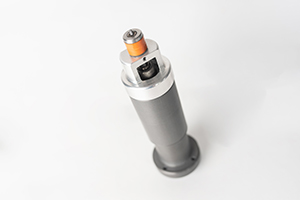

Our full automation system includes temporary fasteners installation and removal as well as feed, sort and vision systems to pick and place for fully flush, ultra-low profile and protruding headed fasteners. All delivered via a robotic arm this turnkey solution can be installed as both as a retrofit and new build installation.

Kwikbolt | Automation Product Page

Aerospace Fastener Solutions

Kwikbolt also provides a bespoke temporary blind fastener service to businesses with more particular requirements. We design, manufacture, test and supply bespoke products, which undergo a stringent trial and evaluation process to ensure that the design meets all of our customers’ business challenges with the minimum number of amendments. Once the bespoke product has been approved by the client, it is produced in volume at the highest quality to provide the build line with our unique fastener technology solution.

Our bespoke service can be requested via email, info@kwikbolt.com , and one of our engineers will contact you to discuss your requirements and start the process.

The information we need is:

- Diameter of holes
- Hole tolerance
- Lengths of doweling required (min / max)
- Grip ranges (min / max)
- Clamp loads requirements
- Head configuration
- Materials being clamped / dowelled
- Estimated quantities needed
- Estimated delivery date

Your new design will be with you in 48 hours for design review.

Kwikbolt provide a wide range of extras from accessories to service and maintenance support to customer around the world.

Kwikbolt Accessories

At Kwikbolt we provide a full range of accessories to support the installation and removal of all of our fasteners. Each piece of equipment has been designed and modified to ensure the optimum performance of our Kwikbolts and to provide the quickest installation, removal and maintenance.

Kwikbolt Accessories Page

Kwikbolt Service and Maintenance

At Kwikbolt we provide a full after care service for our products within their final environment. Our Service and Maintenance contracts allow customers to maximise the return of investment in Kwikbolt by maximising product life, reducing costs and maintaining product performance.

Kwikbolt Service and Maintenance Page
